TT Silent M 200mm UN R1 1020m3/h - Winflex ventilation
Product details
WINFLEX EXTRACTOR - TT SILENT M 200 UN R1
The Winflex TT Silent M will allow you to regulate the temperature and renew the air in your growing space.
The fan is located inside a soundproof housing to ensure ultra quiet ventilation.
The air is still powerful and high pressure thanks to a high performance combination of two axial and centrifugal fans, providing a powerful, high pressure airflow.
The TT Silent M UN R1 is equipped with a temperature module and an electronic speed control to automatically control the airflow and motor speed according to the air temperature in your room. To do this you have:
- A speed control knob to adjust the motor speed
- A thermostat control knob to adjust the temperature set point
- An indicator light
The UN option allows you to sense the external temperature, a 4 m long probe is attached to the extractor.
Design:
Outer casing made of steel, coated with polymer.
Inner casing soundproofed with 50 mm mineral wool layer and specially perforated for soundproofing.
The fan casing is equipped with an airtight terminal box for connection to the power supply.
Motor:
Motor equipped with thermal switches to prevent the motor from overheating and to protect it.
Service life up to 40,000 hours in non-stop operation.

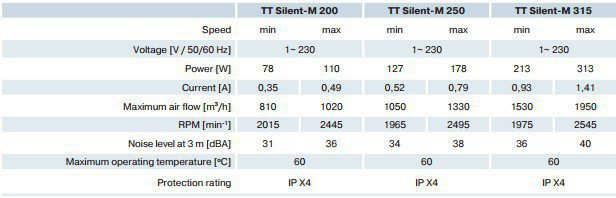

Technical specifications:
Air outlet diameters: 200 mm
UN R1 technology
Flow rate: 810m3/h or 1020m3/h
Power consumption: 78 W to 110 W
Length: 550 mm
Width: 386 mm
Height: 295 mm
Guaranteed 1 year
--IEC male cable:
requires IEC female cable and power plug not included --
ERP Features: (pictured)
The technical parameters on the ErP energy label and the declaration of performance (DoP) are listed for fan operation at an external pressure of 100 Pa according to EN13141-7:2010
datasheet
Name | TT Silent M 200mm UN R1 1020m3/h - Winflex ventilation |
Brand | Winflex |
Composition | Plastic |
Eco-contribution (€) | 1 |
Air flow | 801 to 1500 m3/h |
Output diameter (mm) | 200 |
Inlet diameter (mm) | 200 |
Country of manufacture | UKRAINE |
Tri des déchets |
Nos emballages/produits peuvent faire l’objet d’une consigne de tri. En savoir plus.
|
Downloads
TT Silent-M manual | Download - (1.46MB) |
