Complete system Expert Series 1000W DE EL UHF Nanotube - ballast + reflector + bulb - DimLux

Horticultural System Kit Expert Series 1000W DE EL UHF by Dimlux

The DimLux Expert series is the most advanced and complete lighting system on the market.

Consisting of an Xtreme ballast and an Alpha Optics 98 reflector this complete lighting system will allow you to achieve maximum performance!

The Alpha Optics 98 reflector

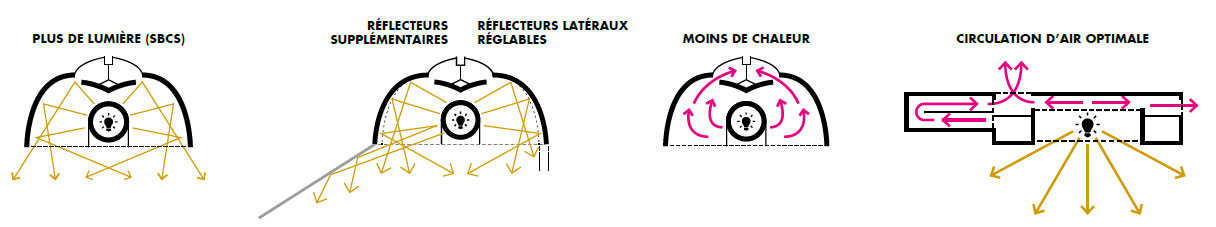

The Alpha Optics 98 reflector has been designed according to the Single Bounce Clear Sight (SBCS) principle.
It has been designed with Miro Silver mirrors in order to obtain the highest possible efficiency: 98% of reflection!
It can also be equipped with adjustable side reflectors to obtain a better coverage and minimize light loss through walls.
It is an open reflector which allows the bulb to cool passively, to promote its lifespan.

Its unique design has been thought out with a 50mm connector on the reflector. This air outlet will actively draw in hot air to significantly lower the ambient temperature.

This reflector supports bulbs from 250 to 750 Watts.

Reflector with nanotube

This reflector is equipped with an ultra-transparent glass nanotube coated with an anti-reflection nanocoating. It will provide the highest possible light transmission rate: 99%!

The nanotube fixtures have 2 x 50 mm sockets that can be used to dramatically reduce the ambient temperature by blowing 200^m3/hour of cool air into each fixture.
By using a nanotube, the air can be extracted in parallel to the luminaire, the lamp will always maintain the ideal temperature to maximize efficiency and life. It is possible to achieve 20% lumens, this is only possible if the lamp is actively cooled.

DimLux Xtreme ballast

This ballast gives you a very high light output thanks to the combination of booster powers with 400V control.
In this version, the 1000W DE EL UHF ballast accepts a 400V EL electronic bulb with a mains voltage of 230V.
The combination of this DimLux Xtreme ballast and theGreenPower 400V EL Double Ended bulb provides an unmatched amount of light growth.

This ballast gives you the ability to choose different dimming positions: Soft-Off, 600W, 700W, 800W, 900W, 1000W, 1100W and 1200W.

Total control over your environment

DimLux offers you to add the Maxi Controller which is a modular control system that can control the DimLux lighting system, a fan and the heating. It can also control and monitor CO2, evaporation pressure and plant temperature depending on the sensors chosen.
For example, if you get the surveillance camera, it will control the temperature of the plants with the RH sensor and/or the temperature sensor.
All these elements are to be purchased separately, but will allow you to have an intelligent and efficient control tool to take care of your plants. The Maxi Controller allows you to control up to 160 DimLux Expert fittings or Xtreme ballasts, so think about it for large installations!
Find all these options in the associated products just below.

Technical specifications :

Dimensions: 67.5 x 27.5 x 13 cm
Power: 1000 Watts
Power consumption at 1000W: 1050W 4.5A at 230V
Power consumption with booster at 1200W: 1260W 5.2A at 230 V
Ø 50 mm connector for active suction
Weight: 6.3 Kg

Lighting characteristics :

Bulb 1000W 400V EL Double Ended Philips
Reflector Alpha Optics 98
PPF at 1200W : 2 470 µmol
Lighting surface at 1000W : 1,40m² minimum and 3,30m² maximum
Lighting surface at 1200W : 1,65m² minimum and 4,00m² maximum
