Soundproof box 5050 m³ Winflex for extractor 250 mm - 315 mm
Soundproof box with air extractor 5050 m3/h - Flange 250mm - Winflex
Soundproof box 5050 m³ Winflex for extractor 250 mm - 315 mm
Soundproof box 5050 m³ Winflex for extractor 250 mm - 315 mm
Soundproof box 5050 m³ Winflex for extractor 250 mm - 315 mm
Soundproof box 5050 m³ Winflex for extractor 250 mm - 315 mm
Soundproof box with air extractor 5050 m3/h - Flange 250mm - Winflex
Soundproof box with air extractor 5050 m3/h - Flange 250mm - Winflex
Soundproof box with air extractor 5050 m3/h - Flange 250mm - Winflex
Soundproof box 5050 m³ Winflex for extractor 250 mm - 315 mm
Soundproof box 5050 m³ Winflex for extractor 250 mm - 315 mm
Soundproof box with air extractor 5050 m3/h - Flange 250mm - Winflex

Soundproof box with air extractor 5050 m3/h - Flange 250mm - Winflex

€560.00
€700.00
Soundproof box with air extractor 5050 m3/h - Flange 250mm - Winflex
€560.00
€700.00
Secure payment
  • Bank card
    Logo Bank card
  • MasterCard
    Logo MasterCard
  • Visa
    Logo Visa
  • Maestro
    Logo Maestro
  • x3
    Logo x3
Loyalty
By buying this product you can collect up to 56 loyalty point(s), which can be converted into a voucher of €11.20.
Free delivery from €169 depending on delivery country
At home from : Saturday 23/11/2024 see details

Product details

Sono-Box Wood Winflex Soundproof Ventilation box with dimensions 650 x 650 x 650mm.
Use 250mm flanges for this very quiet product thanks to its S-vent motor.

Supplied complete (with anti-vibration suspension rings) and ready to plug in.

Technical specifications:
Sound level: 49.9 dB
Housing dimensions: 650 x 650 x 650 mm
Flow rate: 5050m3/h
Inlet / outlet flange: 2 x 250 mm + 1 x 400 mm
Maximum power: 1150 W
Minimum power: 690 W
Maximum current: 8 A
Minimum current: 3 A

1 year warranty

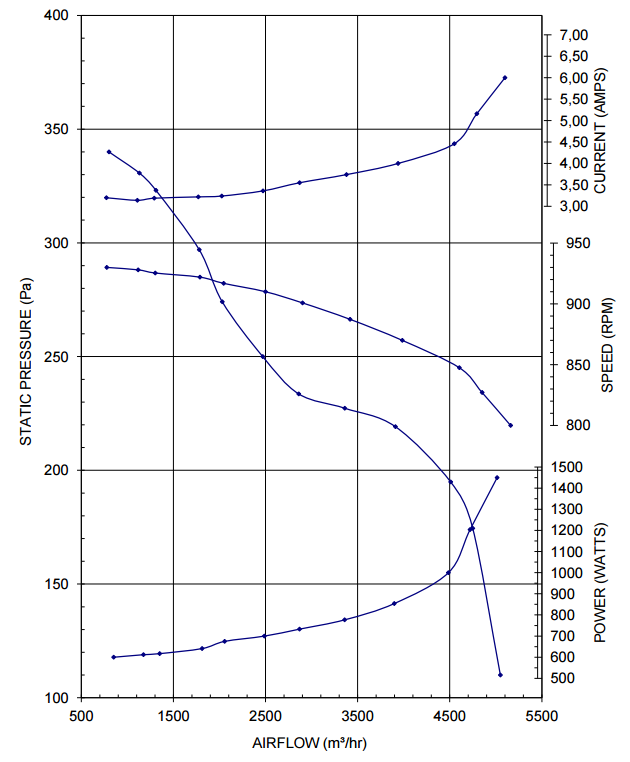

Load diagram:


schema courbe

datasheet

Name Soundproof box with air extractor 5050 m3/h - Flange 250mm - Winflex
Brand Winflex
Eco-contribution (€) 5
Air flow 1501 to 7000 m3/h
Output diameter (mm) 400
Inlet diameter (mm) 250
Country of manufacture NETHERLANDS
