Sono-Box Wood Winflex Soundproof Ventilation box with dimensions 350 x 350 x 350mm.
Use 200mm flanges (inlet / outlet) for this very quiet product thanks to its S-vent motor.
Supplied complete (with anti-vibration suspension rings) and ready to plug in.
Technical specifications:
Sound level: 31.9 dB
Housing dimensions: 350 x 350 x 350 mm
Flow rate: 750m3/h
Inlet / outlet flange: 200 mm
Maximum power: 160 W
Minimum power: 60 W
Maximum current: 1.2 A
Minimum current: 0.73 A
1 year warranty

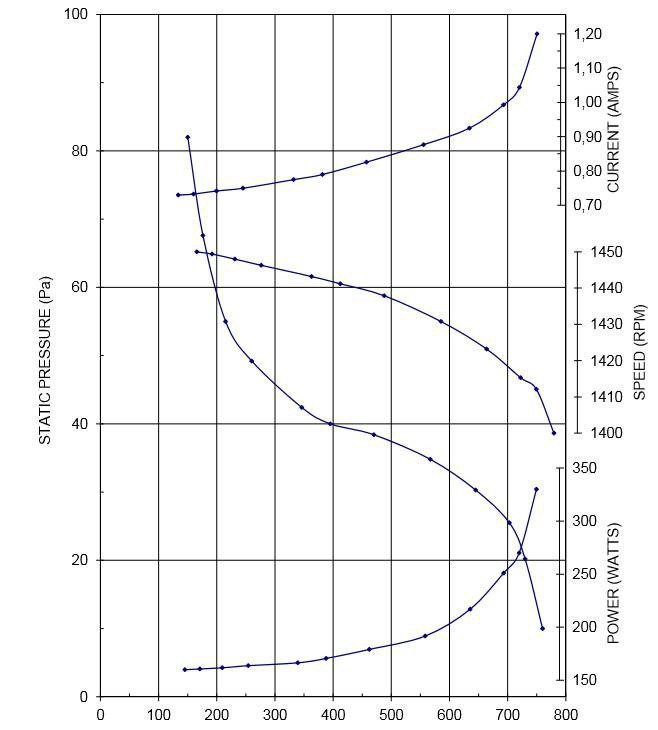

Load diagram :
datasheet
| Name | Soundproof box with air extractor 750 m3/h - Flange 200mm - Winflex |
| Brand | Winflex |
| Eco-contribution (€) | 1,75 |
| Air flow | 401 to 800 m3/h |
| Output diameter (mm) | 200 |
| Inlet diameter (mm) | 200 |
| Country of manufacture | NETHERLANDS |
