TT U 150 air extractor with thermostat and integrated 520m3/h drive - Winflex

TT U Ø 150mm - Winflex

Winflex is a brand specialized in ventilation.
Growshops.fr offers you their TT U ventilation system.

This ventilation system allows you to introduce or extract air in order to renew the air within your grow room, as well as regulate the temperature of your space.

The TT range is compatible with round air ducts from Ø 100 to 315 mm, depending on the product chosen.
Initially designed for ventilation of bathrooms, wet rooms, apartments etc...
The TT range will fit perfectly into any grow room, from the smallest to the largest grow tent.
Equipped with two speeds.

TT U extractors have the same performance as the TT range, but go one step further: they feature a built-in thermostat and variable speed drive.
You'll be able to manage the temperature of your hydroponic culture to perfection!

TT U Ø150mm specifications:
Inlet and outlet diameters: Ø 150 mm
Minimum air flow: 405^m3/h
Maximum air flow: 520^m3/h
Power: 30 to 60 Watts depending on air flow selected
male IEC plug (supplied)

Please note: cables and mains plug not supplied available here.

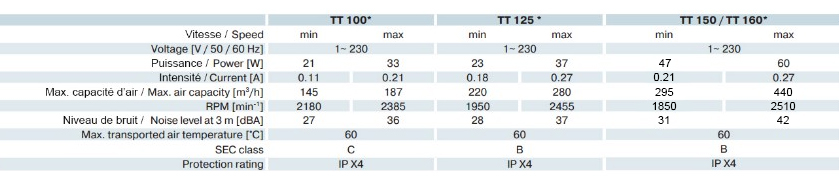

All technical specifications for TT / TT U extractors from Winflex :

All TT / TT U Extractor dimensions from Winflex :

Diagram forTT - TT U 150 extractor fromWinflex :

ERP features: (pictured)

The technical parameters on the ErP energy label and the declaration of performance (DoP) are listed for fan operation at an external pressure of 100 Pa in accordance with EN13141-7:2010
