TT Pro U 315mm air extractor with thermostat - Winflex ventilation
Introducing or extracting air is easy with Winflex!
Product details
TT Pro U Ø 315mm - Winflex
Winflex is a brand specialized in ventilation.
Growshops.fr proposes you their TT Pro ventilation system.
This ventilation system will allow you to introduce or extract air in order to renew the air within your grow room, as well as regulate the temperature of your space.
The TT range is compatible with round air ducts from Ø 100 to 315 mm depending on the product chosen.
Initially designed for the ventilation of bathrooms, wet rooms, apartments etc... The TT range will fit perfectly in the smallest to the largest grow tent.
The TT Pro expands the capabilities of the TT range with a hemisphere shaped rotor and specially profiled blades that increase the circular velocity of the airflow and provide higher pressure and power compared to standard in-line fans.
The diffuser, specially profiled impeller and steering vanes distribute the airflow at the outlet of the extractor in such a way as to achieve the best combination of high performance, enhanced pressure and low noise.
The special feature of the TT Pro U range is that it is equipped with an electronic thermostat and a 3m remote sensor in order to have a logic of operation according to the temperature.
If you want high performance ventilation, the TT Pro U range is made for you!
Characteristics TT Pro U Ø315mm :
Inlet and outlet diameter : Ø 315 mm
Minimum air flow : 1570m3/h
Maximum air flow : 2050m3/h
Power : from 230 to 320 Watts according to the selected air flow
All the technical characteristics of the Winflex TT Pro U extractors:
All the dimensions of the Winflex TT Pro extractors:

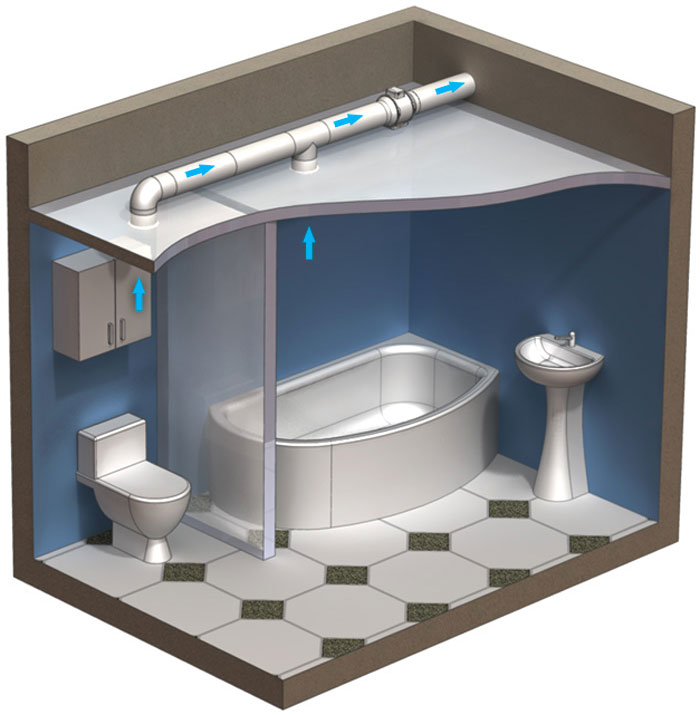

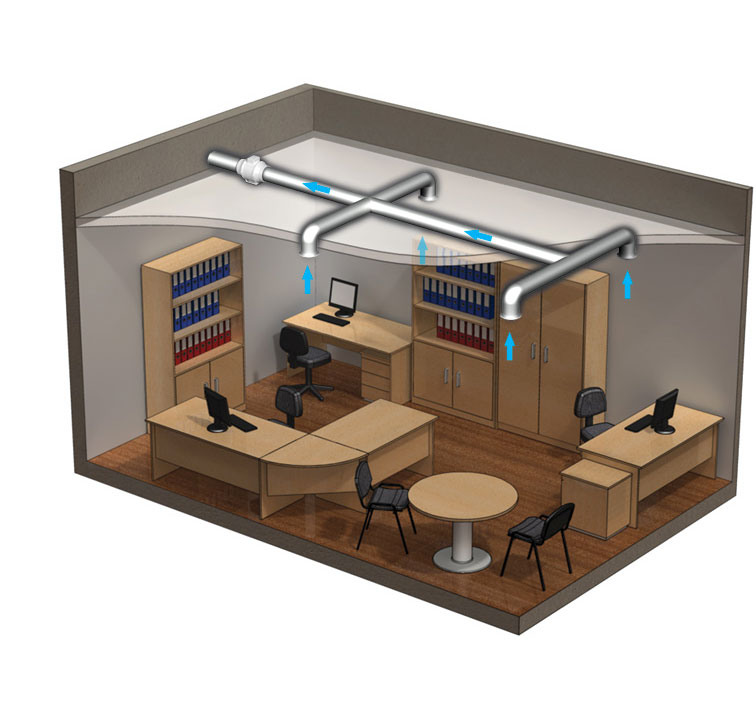

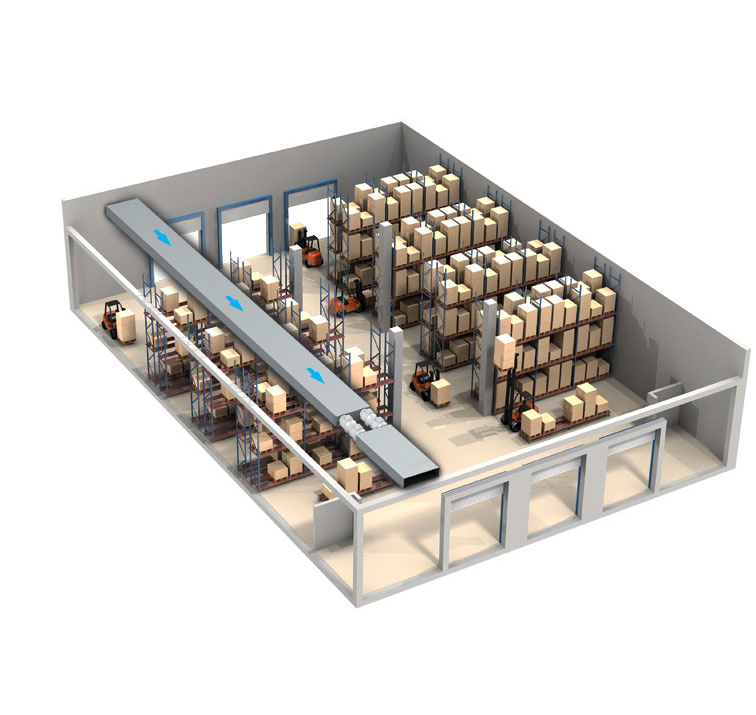

Examples of situation:
ERP characteristics: (in photo)
The technical parameters on the ErP energy label and the declaration of performance (DoP) are listed for the operation of the fan at an external pressure of 100 Pa according to EN13141-7:2010
datasheet
Name | TT Pro U 315mm air extractor with thermostat - Winflex ventilation |
Brand | Winflex |
Composition | Plastic |
Eco-contribution (€) | 1,75 |
Air flow | 1501 to 7000 m3/h |
Output diameter (mm) | 350 |
Inlet diameter (mm) | 350 |
Country of manufacture | UKRAINE |
