TT Silent M 150mm 550m3/h - Winflex ventilation
Product details
WINFLEX EXTRACTOR - TT SILENT M 150
The Winflex TT Silent M will allow you to regulate the temperature and renew the air in your growing space.
The fan is located inside a soundproof housing to ensure ultra quiet ventilation.
The air is still powerful and high pressure thanks to a high performance combination of two axial and centrifugal fans, providing a powerful, high pressure airflow.
Design:
Polymer coated steel outer casing.
Soundproofed inner casing with 50 mm mineral wool layer and specially perforated for soundproofing.
The fan casing is equipped with an airtight terminal box for connection to the power supply.
Motor:
Motor equipped with thermal switches to prevent the motor from overheating and to protect it.
Service life up to 40,000 hours in non-stop operation.
Technical specifications:
Air outlet diameters: 150 mm
Equipped with 2 modifiable speeds according to the connection you will have set up.
Flow rate: 405m3/h or 550m3/h
Consumption: 45 W to 52 W
Length: 580 mm
Width: 274 mm
Height: 260 mm
Guaranteed 1 year
-- Caution : Cables and plugs are not included --

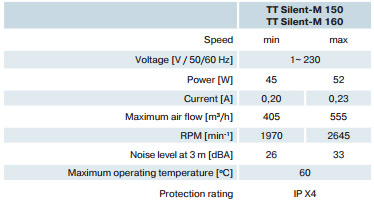

ERP characteristics: (in photo)
The technical parameters on the ErP energy label and the declaration of performance (DoP) are listed for fan operation at an external pressure of 100 Pa according to EN13141-7:2010
datasheet
Name | TT Silent M 150mm 550m3/h - Winflex ventilation |
Brand | Winflex |
Composition | Plastic |
Eco-contribution (€) | 1 |
Air flow | 401 to 800 m3/h |
Output diameter (mm) | 150 |
Inlet diameter (mm) | 150 |
Country of manufacture | UKRAINE |
Tri des déchets |
Nos emballages/produits peuvent faire l’objet d’une consigne de tri. En savoir plus.
|
Downloads
TT Silent-M manual | Download - (1.46MB) |
